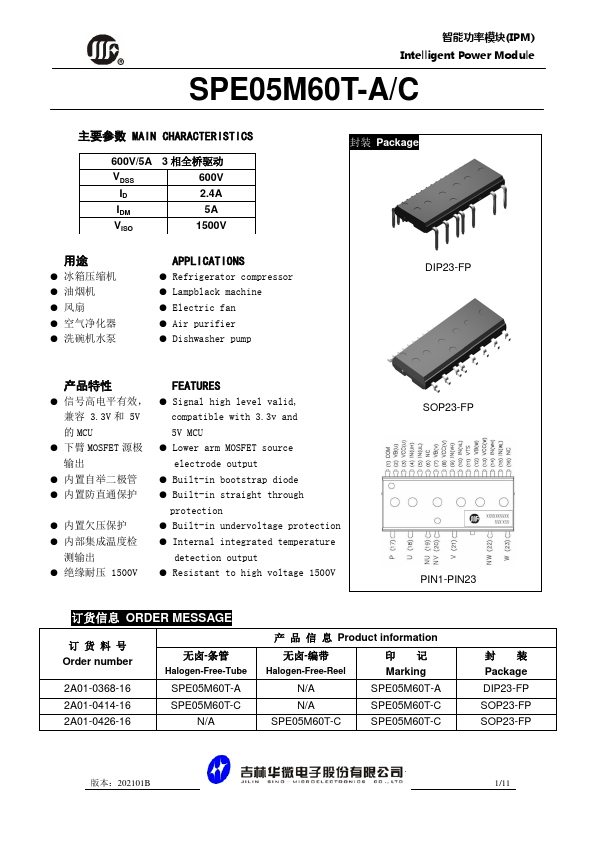

SPE05M60T-A - Intelligent Power Module

Product Overview

JILIN SINO

Datasheet Details

Part number	SPE05M60T-A
Manufacturer	JILIN SINO
File Size	968.79 KB
Description	Intelligent Power Module
Datasheet	SPE05M60T-A Datasheet
Additional preview pages of the SPE05M60T-A datasheet.

Product details

Description

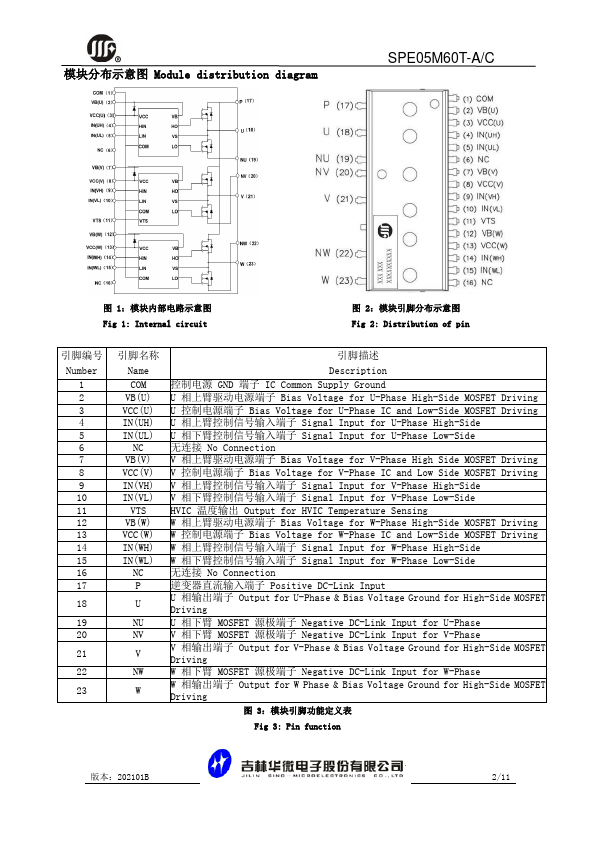

GND IC Common Supply Ground U Bias Voltage for U-Phase High-Side MOSFET Driving U Bias Voltage for U-Phase IC and Low-Side MOSFET Driving U Signal Input for U-Phase High-Side U Signal Input for U-Phase Low-Side No Connection V Bias Voltage for V-Phase High Side MOSFET Driving V Bias Voltage for V-Phase IC and Low Side MOSFET Driving V Signal Input for V-Phase High-Side V Signal Input for V-Phase Low-Side HVIC Output for HVIC Temperature Sensing W Bias Voltage for W-Phase High-Side M

Features

Signal high level valid, compatible with 3.3v and 5V MCU.
Lower arm MOSFET source electrode output.
Built-in bootstrap diode.
Built-in straight through protection.
Built-in undervoltage protection.
Internal integrated temperature detection output.
Resistant to high voltage 1500V SOP23-FP PIN1-PIN23 ORDER.
