SPE05M60T-C, SPE05M60T-A Datasheet - JILIN SINO

SPE05M60T-C Intelligent Power Module

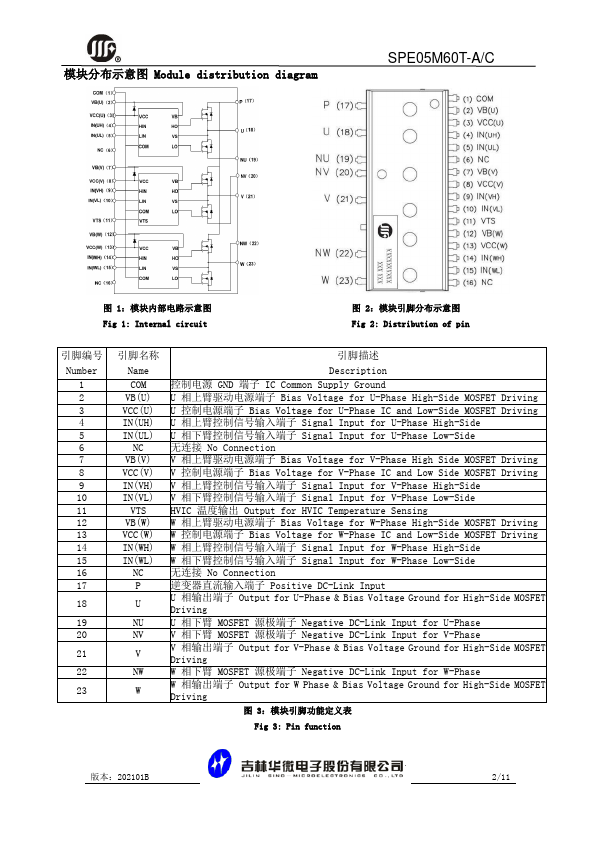

GND IC Common Supply Ground U Bias Voltage for U-Phase High-Side MOSFET Driving U Bias Voltage for U-Phase IC and Low-Side MOSFET Driving U Signal Input for U-Phase High-Side U Signal Input for U-Phase Low-Side No Connection V Bias Voltage for V-Phase High Side MOSFET Driving V Bias Voltage.

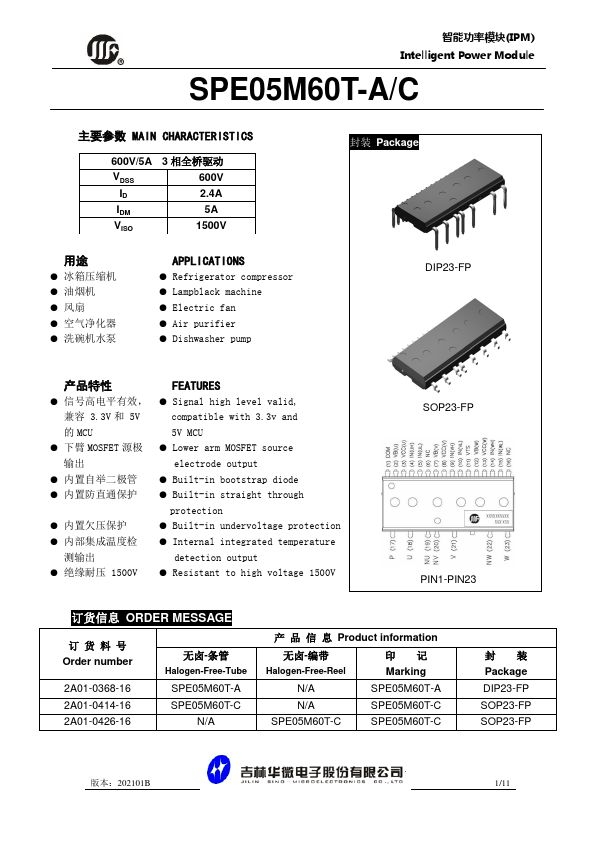

SPE05M60T-C Features

* Signal high level valid, compatible with 3.3v and 5V MCU

* Lower arm MOSFET source electrode output

* Built-in bootstrap diode

* Built-in straight through protection

* Built-in undervoltage protection

* Internal integrated temperature detection output

* Resistant to hig

SPE05M60T-A-JILINSINO.pdf

SPE05M60T-C Datasheet Preview — This datasheet PDF includes multiple part numbers: SPE05M60T-C, SPE05M60T-A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SPE05M60T-C, SPE05M60T-A

Manufacturer:

JILIN SINO

File Size:

968.79 KB

Description:

Intelligent power module.

Note:

This datasheet PDF includes multiple part numbers: SPE05M60T-C, SPE05M60T-A.
Please refer to the document for exact specifications by model.
