RS3GC, RS3AC GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIER

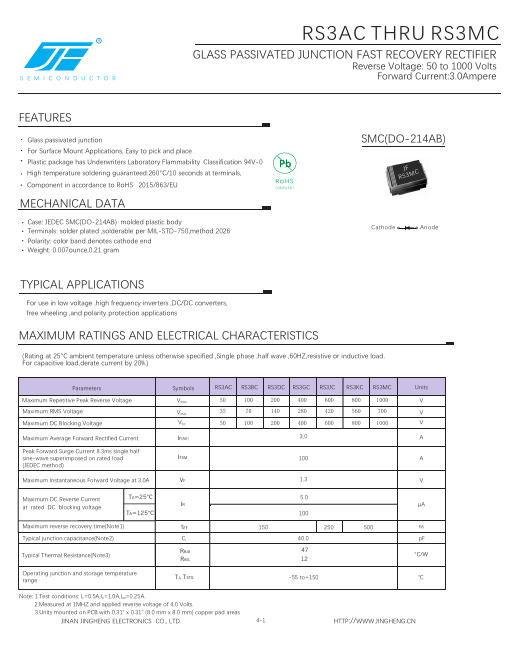

📥 Download Datasheet Datasheet Preview Page 1

Description

R SEMICONDUCTOR RS3AC THRU RS3MC GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIER Reverse Voltage: 50 to 1000 Volts Forward Current:3.0Ampere FEATU.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS3GC, RS3AC. Please refer to the document for exact specifications by model.

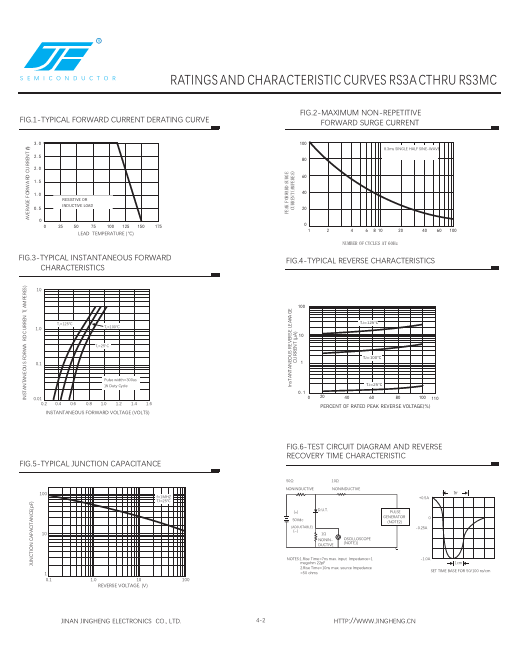

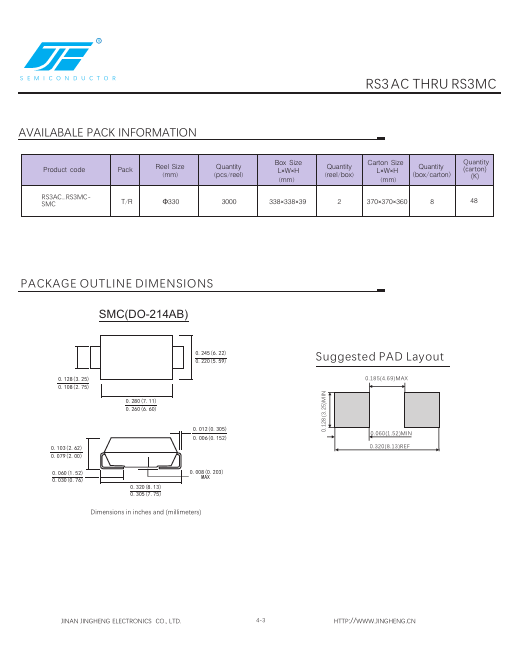

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS3GC, RS3AC
Manufacturer
JINAN JINGHENG
File Size
456.72 KB
Datasheet
RS3AC-JINANJINGHENG.pdf
Description
GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: RS3GC, RS3AC.
Please refer to the document for exact specifications by model.

Applications

* Easy to pick and place Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Pb High temperature soldering guaranteed:260°C/10 seconds at terminals, Component in accordance to RoHS 2015/863/EU JF RoHS SS34CLOMBPLIANT MECHANICAL DATA Case: JEDEC SMC(DO-214AB) molded plas
