NJM2823 Datasheet, Regulator, JRC

NJM2823 Features

  • Regulator
  • Precision Reference Voltage 1136mV±0.4%
  • Low temperature coefficient 15ppm/°C typ.
  • Low Quiescent Current 60µA max.
  • No Output Capacitor Required

PDF File Details

Part number:

NJM2823

Manufacturer:

JRC

File Size:

166.67kb

Download:

📄 Datasheet

Description:

Shunt regulator. NJM2823 is a precision and low quiescent current shunt voltage reference. Reference voltage form bandgap circuit has guaranteed the h

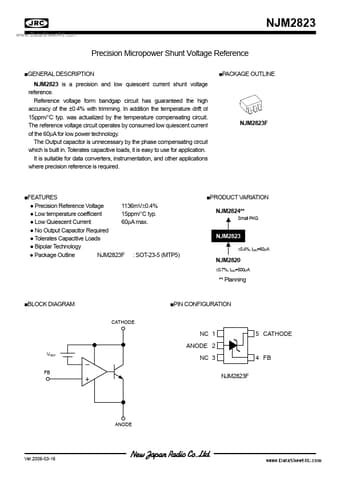

Datasheet Preview: NJM2823 📥 Download PDF (166.67kb)
Page 2 of NJM2823 Page 3 of NJM2823

NJM2823 Application

  • Applications where precision reference is required.
  • PACKAGE OUTLINE NJM2823F
  • FEATURES
  • Precision Reference Voltage 1136
