NJM2828 Datasheet, Regulator, JRC

NJM2828 Features

  • Regulator z Low Current Consumption 0.13V (typ.) @Io=60mA z High Precision Output ±1.5% z High Ripple Rejection 65dB(typ.) @f=1kHz, Vo=-7V Version z Output capacitor with 0.1F ceramic capacitor.

PDF File Details

Part number:

NJM2828

Manufacturer:

JRC

File Size:

304.83kb

Download:

📄 Datasheet

Description:

Negative output low drop out voltage regulator. The NJM2828 is a negative output low dropout regulator. Advanced bipolar technology achieves low noise, high precision voltage and hi

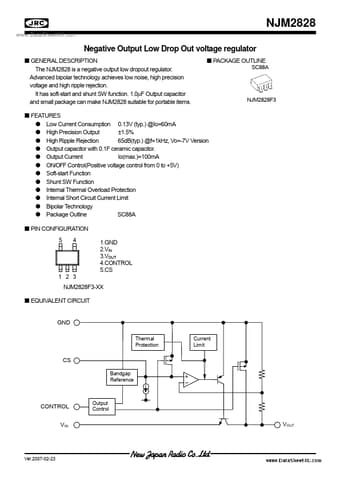

Datasheet Preview: NJM2828 📥 Download PDF (304.83kb)
Page 2 of NJM2828 Page 3 of NJM2828

NJM2828 Application

  • Applications ¿ON/OFF control ON/OFF control can be achieved by applying positive control voltage to CONTROL terminal. Apply positive Vcont ("H") to
