NJM2825

Precision Micropower Shunt Voltage Reference

New Japan Radio

NJM2825 Features

* Precision Reference Voltage 1,200mV±0.5%

* Low temperature coefficient 10ppm/°C typ.

* Low Quiescent Current 0.7µA max.

* No Output Capacitor Required

* Tolerates Capacitive Loads

* Bipolar T

NJM2825 General Description

NJM2825 is a precision and low quiescent current shunt voltage reference. Reference voltage form bandgap circuit has guaranteed the high accuracy of the ±0.5% with trimming. In addition the temperature drift of 10ppm/°C typ. was actualized by the temperature compensating circuit. The reference volta.

NJM2825 Datasheet (105.15 KB)

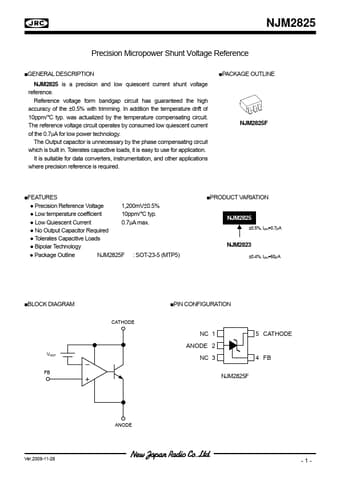

NJM2825 Datasheet Preview — Preview of NJM2825 PDF

Datasheet Details

Part number:

NJM2825

Manufacturer:

New Japan Radio

File Size:

105.15 KB

Description:

Precision micropower shunt voltage reference.
