NJM2827 Datasheet, Regulator, NJR

NJM2827 Features

  • Regulator z Low Dropout Voltage :0.13V (typ.) @Io=60mA z High Precision Output :±1.5% z High Ripple Rejection :65dB(typ.) @f=1kHz, Vo=-7V Version z Output capacitor with 1.0µF ceramic capacitor.

PDF File Details

Part number:

NJM2827

Manufacturer:

NJR

File Size:

256.62kb

Download:

📄 Datasheet

Description:

Negative output low drop out voltage regulator. The NJM2827 is a negative output low dropout regulator. Advanced bipolar technology achieves low noise, high precision voltage and hi

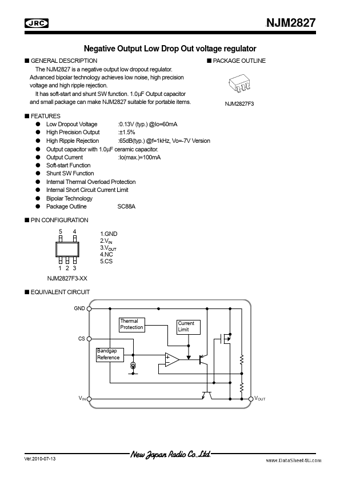

Datasheet Preview: NJM2827 📥 Download PDF (256.62kb)
Page 2 of NJM2827 Page 3 of NJM2827

NJM2827 Application

  • Applications www.DataSheet4U.com 0.1µF (Ceramic) 1.0µF
  • 4 VIN VIN GND VOUT VOUT Cs=0.047µF NJM2827 CS CS
  • 4 -2.2V≤Vo≤-2.
