GS2JA, GS2AA General Purpose Surface Mount Rectifiers

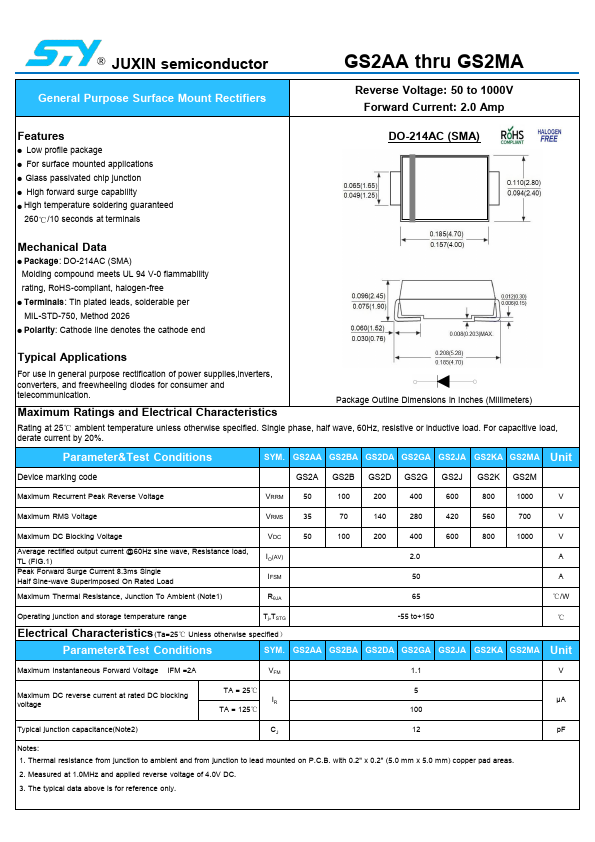

📥 Download Datasheet  Datasheet Preview Page 1

Description

JUXIN semiconductor General Purpose Surface Mount Rectifiers GS2AA thru GS2MA Reverse Voltage: 50 to 1000V Forward Current: 2.0 Amp .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS2JA, GS2AA. Please refer to the document for exact specifications by model.

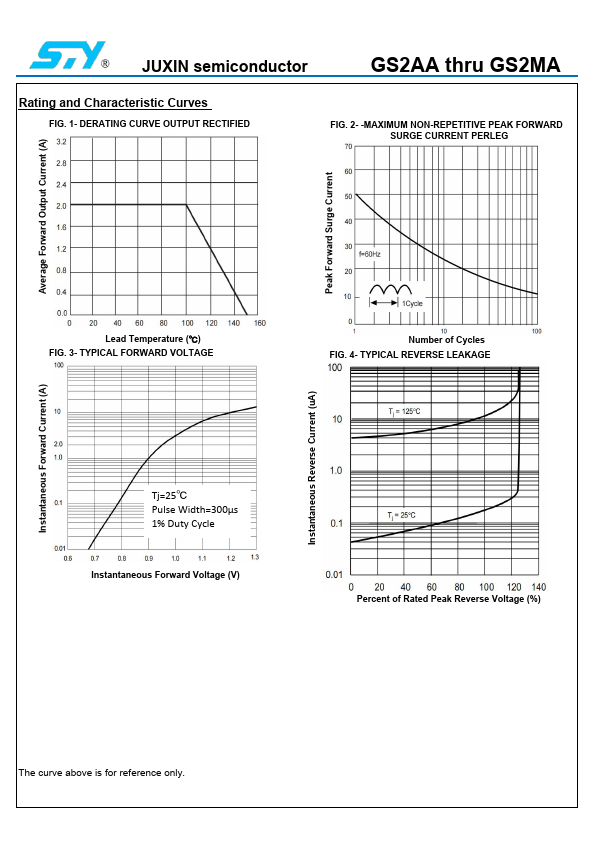

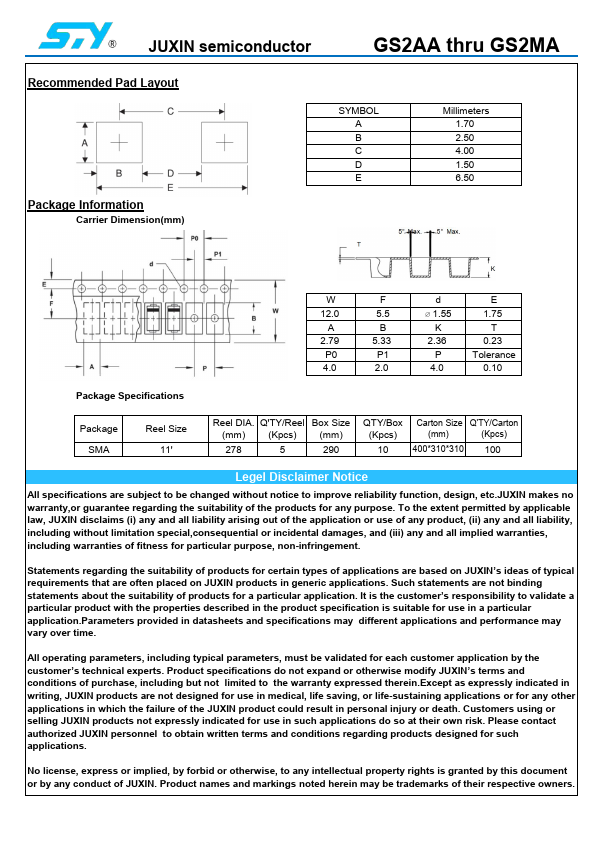

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
GS2JA, GS2AA
Manufacturer
JUXIN
File Size
509.26 KB
Datasheet
GS2AA-JUXIN.pdf
Description
General Purpose Surface Mount Rectifiers
Note
This datasheet PDF includes multiple part numbers: GS2JA, GS2AA.
Please refer to the document for exact specifications by model.

Features

* Low profile package

Applications

* Glass passivated chip junction
* High forward surge capability
* High temperature soldering guaranteed 260℃/10 seconds at terminals DO-214AC (SMA) Mechanical Data
* Package: DO-214AC (SMA) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
* Te
