GS2AA General Purpose Surface Mount Rectifiers

Description

JUXIN semiconductor General Purpose Surface Mount Rectifiers GS2AA thru GS2MA Reverse Voltage: 50 to 1000V Forward Current: 2.0 Amp .

📥 Download Datasheet

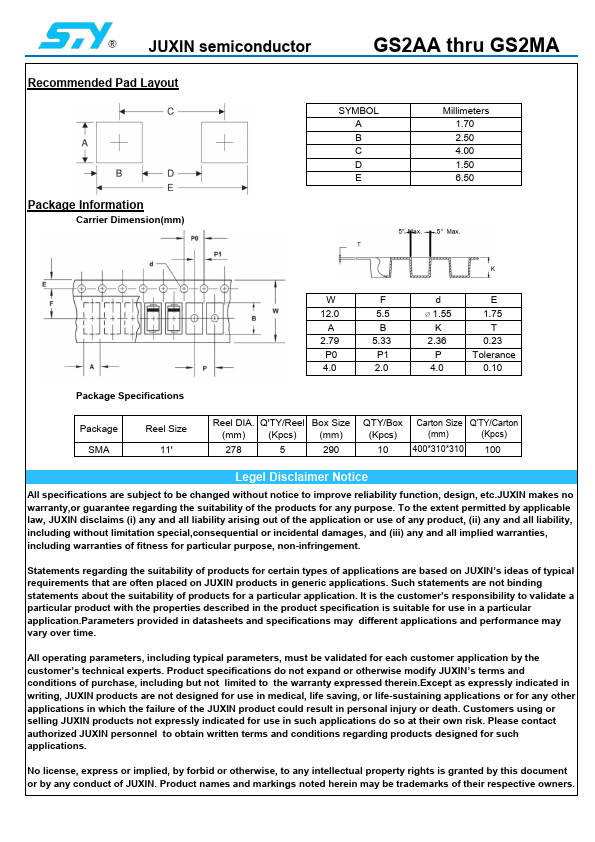

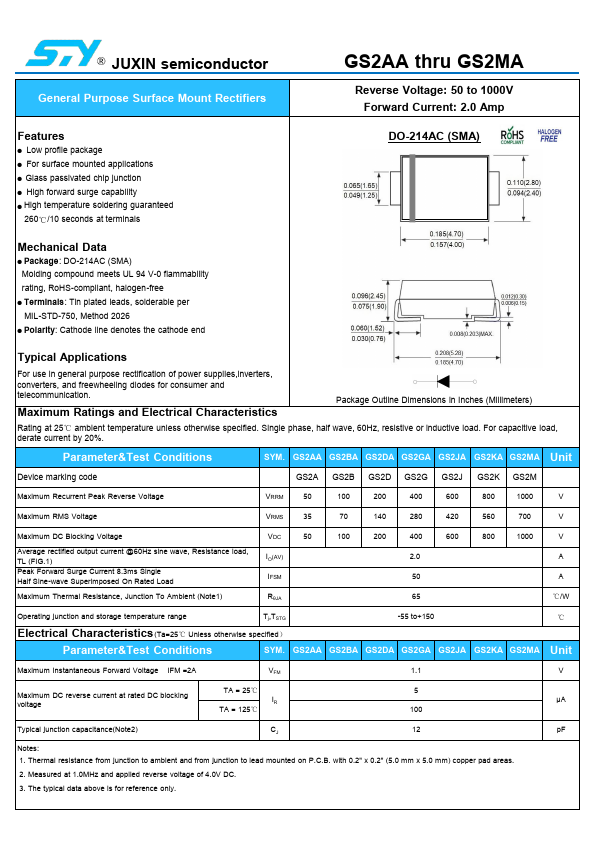

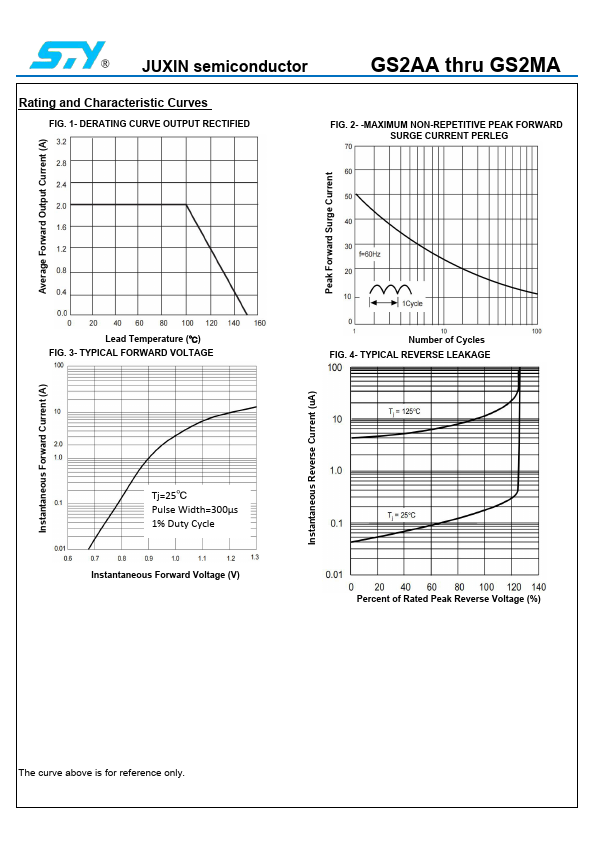

GS2AA Datasheet Preview — Preview of GS2AA PDF

Datasheet Specifications

Part number: GS2AA
Manufacturer: JUXIN
File Size: 509.26 KB
Datasheet: GS2AA-JUXIN.pdf
Description: General Purpose Surface Mount Rectifiers

Features

* Low profile package

Applications

* Glass passivated chip junction
* High forward surge capability
* High temperature soldering guaranteed 260℃/10 seconds at terminals DO-214AC (SMA) Mechanical Data
* Package: DO-214AC (SMA) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
* Te
