SG48001-1G Datasheet - JWD

SG48001-1G 10/100/1000BASE SMD Transformer

Mianyang High-tech Zone Jingweida Science And Technology Co.,Ltd 10/100/1000BASE SMD Transformer Part Number:SG48001-1 G Page:1/1 Compliant with IEEE 802.3 standard, Including 350 uH OCL with 8 mA bias. RoHS compliant. Operating temperature range :-0°C to +70°C. Storage temperature range: -0℃ to +85℃. Part Number SG48001-1 G Part Number SG48001-1 G Schematics: Electrical Specifications @ 25°C Turns Ratio (±5%) OCL(uH Min) @100KHz/0.1V Insertion Loss (dB Max) TX .

SG48001-1G Datasheet (124.37 KB)

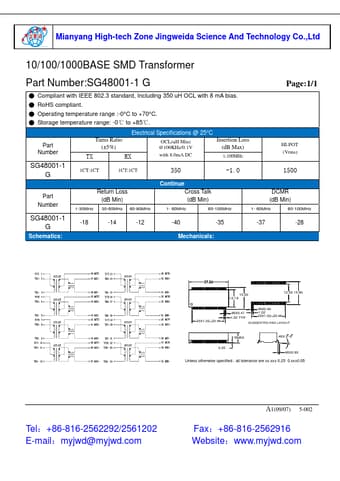

Preview of SG48001-1G PDF

Datasheet Details

Part number:

SG48001-1G

Manufacturer:

JWD

File Size:

124.37 KB

Description:

10/100/1000base smd transformer.
