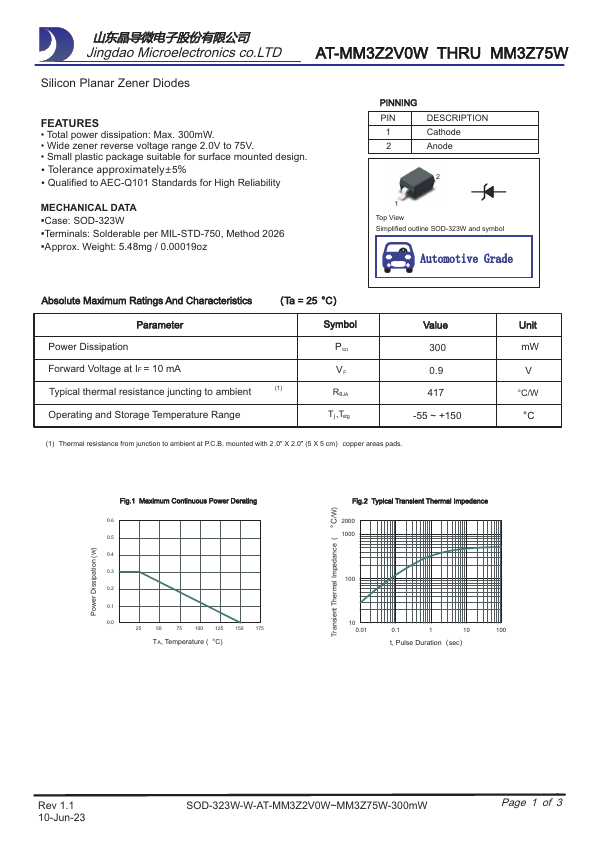

1 Cathode 2 Anode 2 1 Top View Simplified outline SOD-323W and symbol Value Unit Absolute Maximum Ratings And Characteristics Parameter Power Dissipation Forward Voltage at IF = 10 mA Typical thermal resistance juncting to ambient Operating and Storage Temperature Range （Ta = 25 °C） Symbol
MM3Z7V5W Features
* Total power dissipation: Max. 300mW.
* Wide zener reverse voltage range 2.0V to 75V.
* Small plastic package suitable for surface mounted design.
* Tolerance approximately±5%
* Qualified to AEC-Q101 Standards for High Reliability MECHANICAL DATA ▪Case: SOD-3
MM3Z2V0W-JingdaoMicroelectronics.pdf
Datasheet Details
MM3Z7V5W, MM3Z2V0W
Jingdao Microelectronics
96.46 KB
Silicon planar zener diodes.
This datasheet PDF includes multiple part numbers: MM3Z7V5W, MM3Z2V0W.
Please refer to the document for exact specifications by model.
