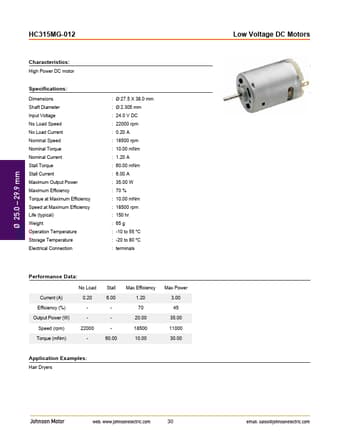

HC315MG-012 Low Voltage DC Motor

Ø 25.0 29.9 mm HC315MG-012 Characteristics: High Power DC motor Specifications: Dimensions Shaft Diameter Input Voltage No Load Speed No Load Current Nominal Speed Nominal Torque Nominal Current Stall Torque Stall Current Maximum Output Power Maximum Efficiency Torque at Maximum Efficiency Speed at Maximum Efficiency Life (typical) Weight Operation Temperature Storage Temperature Electrical Connection : Ø 27.5 X 38.0 mm : Ø 2.305 mm : 24.0 V DC : 22000 rpm : 0.20 A : 18500 rpm : 10..
