JW1965AC - Boost LED Driver

JW1965AC Description

Parameters Subject to Change Without Notice .
The JW®1965AC/ JW1965BC/ JW1965DC/ JW1965EC(JW1965XC series) is a constant current LED driver which applies to single stage Boost power factor correct.

JW1965AC Features

* No auxiliary winding and VCC capacitor
* Supplied from output voltage directly
* High current accuracy of line and load regulation
* Internal compensation PFC technics
* Critical conduction mode
* High efficiency over wide operating range
* LED open protection
* Fre

JW1965AC Applications

* Non-isolation Offline LED driver TYPICAL APPLICATION JW1965XC DRAIN VIN ISP OVP GND JW1965AC/JW1965BC/JW1965DC/JW1965EC Rev.0.21 JoulWatt® Proprietary Information. Patent Protected. 1 Unauthorized Photocopy and Duplication Prohibited. JW1965AC/JW1965BC/JW1965DC/JW1965EC JoulWatt ORDER

📥 Download Datasheet

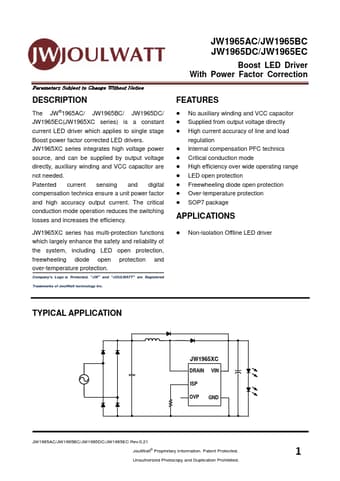

Preview of JW1965AC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
JW1965AC
Manufacturer
JoulWatt
File Size
488.47 KB
Datasheet
JW1965AC-JoulWatt.pdf
Description
Boost LED Driver
