DF15005 - GLASS PASSIVATED BRIDGE RECTIFIERS

The DF15005 by KD is a GLASS PASSIVATED BRIDGE RECTIFIERS. Below is the official datasheet preview.

Datasheet Details

Part number	DF15005
Manufacturer	KD
File Size	873.21 KB
Description	GLASS PASSIVATED BRIDGE RECTIFIERS
Datasheet	DF15005-KD.pdf

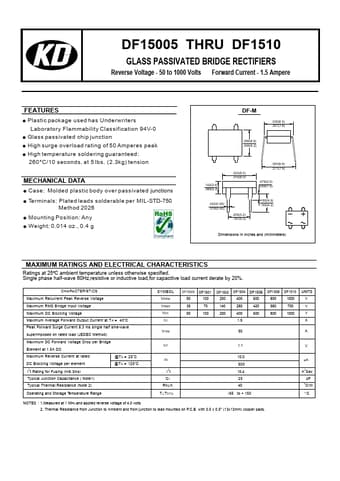

Additional preview pages of the DF15005 datasheet.

Plastic package used has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated chip junction.
High surge overload rating of 50 Amperes peak.
High temperature soldering guaranteed: 260°C/10 seconds, at 5 lbs. (2.3kg) tension.
