KBL401, KBL4005, SINGLE PHASE SILICON BRIDGE RECTIFIER

KBL4005 THRU KBL407 SINGLE PHASE SILICON BRIDGE RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 4.0 Ampere .

KBL4005-KD.pdf

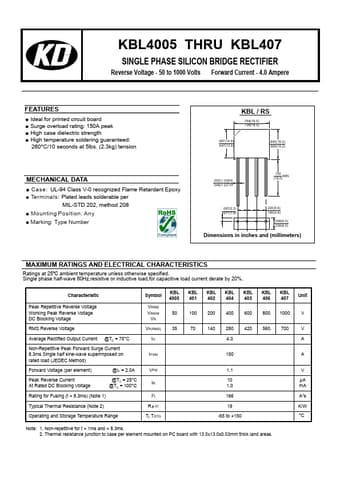

KBL401 Datasheet Preview — This datasheet PDF includes multiple part numbers: KBL401, KBL4005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KBL401, KBL4005

Manufacturer:

File Size:

625.29 KB

Description:

SINGLE PHASE SILICON BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: KBL401, KBL4005.
Please refer to the document for exact specifications by model.

Features

* Ideal for printed circuit board
* Surge overload rating: 150A peak
* High case dielectric strength
* High temperature soldering guaranteed: 260°C/10 seconds at 5lbs. (2.3kg) tension KBL / RS .768(19.5) .728(18.5) .587(14.9) .547(13.9) .640(16.3) .600(15.2) MECHANICAL DATA
