KBL404, KBL4005 Datasheet - KD

KBL404 SINGLE PHASE SILICON BRIDGE RECTIFIER

KBL404 Features

* Ideal for printed circuit board

* Surge overload rating: 150A peak

* High case dielectric strength

* High temperature soldering guaranteed: 260°C/10 seconds at 5lbs. (2.3kg) tension KBL / RS .768(19.5) .728(18.5) .587(14.9) .547(13.9) .640(16.3) .600(15.2) MECHANICAL DATA

KBL4005-KD.pdf

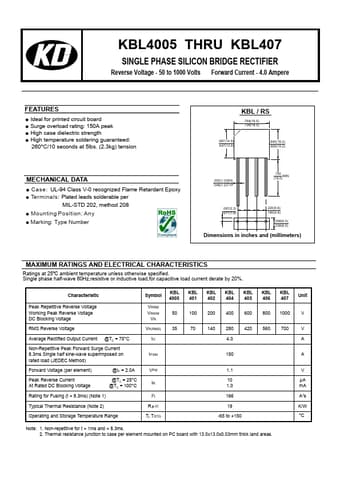

KBL404 Datasheet Preview — This datasheet PDF includes multiple part numbers: KBL404, KBL4005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KBL404, KBL4005

Manufacturer:

File Size:

625.29 KB

Description:

Single phase silicon bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: KBL404, KBL4005.
Please refer to the document for exact specifications by model.
