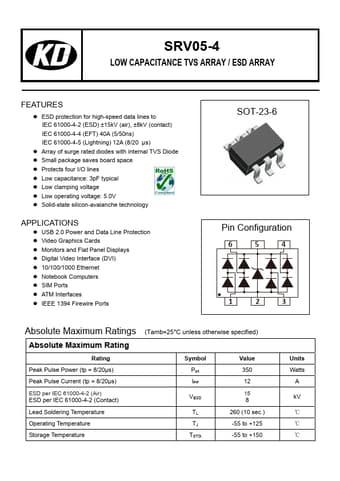

SRV05-4 Datasheet, array equivalent, KD

SRV05-4 Features

• Array
• ESD protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20 μs)

PDF File Details

Part number:

SRV05-4

Manufacturer:

KD

File Size:

819.51kb

Download:

📄 Datasheet

Description:

Low capacitance tvs array.

SRV05-4 Application

• Applications
• USB 2.0 Power and Data Line Protection
• Video Graphics Cards
• Monitors and Flat Panel Displays
• Di
