SRV05-4A Datasheet, Arrays, SMC Diode

SRV05-4A Features

• Arrays
• ESD protection in accordance with:
• IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
• IEC 61000-4-5 (Lightning) 20A (8/20μs)
• IEC 61000-4-4 (EFT) 40A

PDF File Details

Part number:

SRV05-4A

Manufacturer:

SMC Diode

File Size:

444.44kb

Download:

📄 Datasheet

Description:

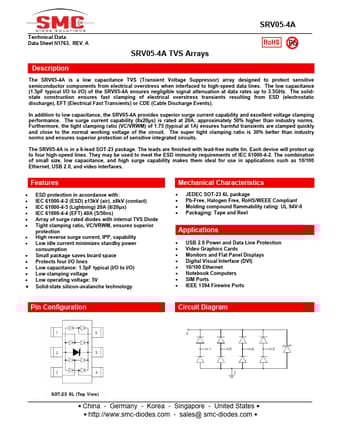

Tvs arrays. The SRV05-4A is a low capacitance TVS (Transient Voltage Suppressor) array designed to protect sensitive semiconductor components fro

SRV05-4A Application

• Applications such as 10/100 Ethernet, USB 2.0, and video interfaces. Features
• ESD protection in accordance with:
• IEC 61000-4-2
