SRV05-4HTG, SRV05 Datasheet - Littelfuse

SRV05-4HTG - TVS Diode Arrays

The SRV05 integrates low capacitance rail-to-rail diodes with an additional zener diode to protect each I/O pin against ESD and high surge events.

This robust device can safely absorb surge current per IEC61000-4-5 (tP=8/20µs) without performance degradation and a minimum ±20kV ESD per IEC61000-4-2.

TVS Diode Arrays (SPA® Diodes) Low Capacitance ESD Protection - SRV05 Series SRV05 Series 6V 10A Diode Array Pinout I/O 1 GND I/O 2 I/O 4 VCC I/O 3 Functional Block Diagram 65 4 1 23 Additional Information Datasheet Resources Samples Life Support Note: Not Intended for Use in Life Support or Life Saving Applications The products shown herein are not designed for use in life sustaining or life saving applications unless otherwise expressly indicated.

© 2017 Littelfuse, Inc.

Specificatio

SRV05-4HTG Features

* ESD, IEC61000-4-2, ±20kV contact, ±30kV air

* EFT, IEC61000-4-4, 40A (5/50ns)

* Lightning, IEC61000-4-5, 10A (8/20μs)

* L ow capacitance of 2pF (TYP) per I/O

* Low leakage current of 0.5μA (MAX) at 5V

* S mall SOT23-6 (JEDEC MO-178) packaging T

SRV05-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: SRV05-4HTG, SRV05. Please refer to the document for exact specifications by model.

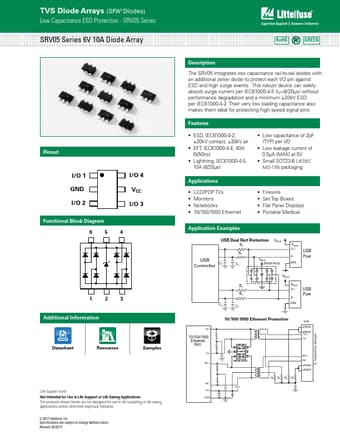

SRV05-4HTG Datasheet Preview Page 2 SRV05-4HTG Datasheet Preview Page 3

Datasheet Details

Part number:

SRV05-4HTG, SRV05

Manufacturer:

Littelfuse ↗

File Size:

529.00 KB

Description:

Tvs diode arrays.

Note:

This datasheet PDF includes multiple part numbers: SRV05-4HTG, SRV05.
Please refer to the document for exact specifications by model.
