SRV05-4-054 Datasheet - WPM

SRV05-4-054 Low Capacitance Array

SRV05-4_054 Low Capacitance Array for Surge & ESD Protection SRV05-4_054 Low Capacitance Array for Surge & ESD Protection The SRV05-4_054 has a low typical capacitance of 3.0pF and operates with virtually no insertion loss to 2.0GHz. This makes the device ideal for protection of high-speed data lines such as USB 2.0, Firewire, DVI, and gigabit Ethernet interfaces. The low capacitance array configuration allows the user to protect four high-speed data or transmission lines. The low inductance c.

SRV05-4-054 Features

* Protects four I/O lines and one Vcc line

* Low capacitance

* Working

SRV05-4-054 Datasheet (355.15 KB)

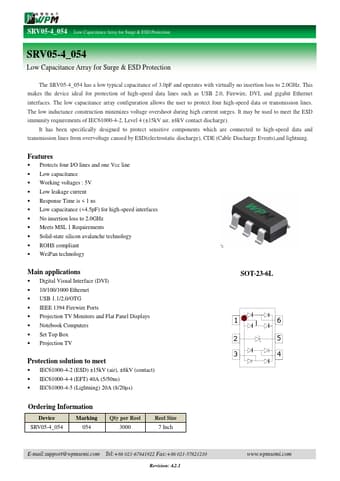

Preview of SRV05-4-054 PDF
SRV05-4-054 Datasheet Preview Page 2 SRV05-4-054 Datasheet Preview Page 3

Datasheet Details

Part number:

SRV05-4-054

Manufacturer:

WPM

File Size:

355.15 KB

Description:

Low capacitance array.
