2N3906SC - EPITAXIAL PLANAR PNP TRANSISTOR

2N3906SC Description

SEMICONDUCTOR TECHNICAL DATA GENERAL PURPOSE APPLICATION.SWITCHING APPLICATION.2N3906SC EPITAXIAL PLANAR PNP TRANSISTOR .

2N3906SC Features

* Low Leakage Current : ICEX=-50nA(Max. ), IBL=-50nA(Max. ) @VCE=-30V, VEB=-3V. Excellent DC Current Gain Linearity. Low Saturation Voltage : VCE(sat)=-0.4V(Max. ) @IC=-50mA, IB=-5mA. Complementary to 2N3904SC. MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL RATING Collector-Base Voltage VCBO -40 Co

📥 Download Datasheet

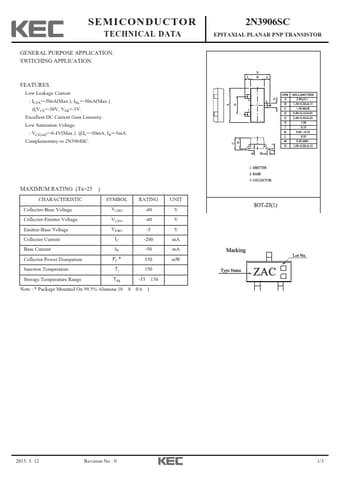

Preview of 2N3906SC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N3906SC
Manufacturer
KEC
File Size
700.00 KB
Datasheet
2N3906SC-KEC.pdf
Description
EPITAXIAL PLANAR PNP TRANSISTOR
