KP11N60D - N-Channel MOSFET

KP11N60D Description

SEMICONDUCTOR TECHNICAL DATA General .
This Super Junction MOSFET has better characteristics, such as fast switching time, low on resistance, low gate charge and excellent avalanche charact.

KP11N60D Features

* VDSS=600V, ID=11A Drain-Source ON Resistance : G H KP11N60D N CHANNEL MOS FIELD EFFECT TRANSISTOR A C K D L B J E N RDS(ON)(Max)=0.38 Qg(typ. )= 20nC @VGS=10V F F M DIM MILLIMETERS _ 0.20 A 6.60 + _ 0.20 6.10 + B _ 0.30 5.34 + C _ 0.20 D 0.70 + _ 0.15 E 2.70 + _ 0.10 2.30 + F 0.96 MAX G 0

📥 Download Datasheet

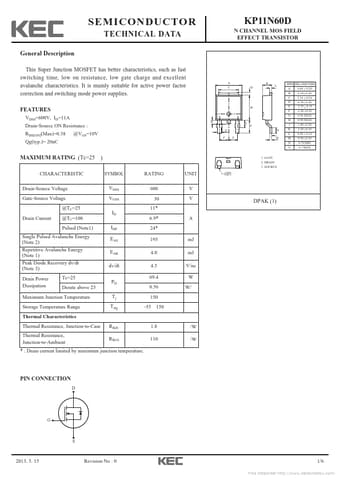

Preview of KP11N60D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KP11N60D
Manufacturer
KEC
File Size
405.41 KB
Datasheet
KP11N60D_KEC.pdf
Description
N-Channel MOSFET
