KTC3770U - EPITAXIAL PLANAR NPN TRANSISTOR

KTC3770U Description

SEMICONDUCTOR TECHNICAL DATA VHF/UHF WIDE BAND AMPLIFIER APPLICATION.KTC3770U EPITAXIAL PLANAR NPN TRANSISTOR .

KTC3770U Features

* Low Noise Figure, High Gain. NF=1.1dB, |S21e|2=11dB (f=1GHz). MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Range VCBO VCEO VEBO IC PC Tj

📥 Download Datasheet

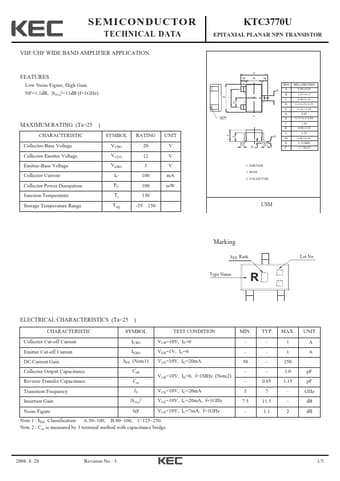

Preview of KTC3770U PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KTC3770U
Manufacturer
KEC
File Size
397.32 KB
Datasheet
KTC3770U-KEC.pdf
Description
EPITAXIAL PLANAR NPN TRANSISTOR
