KTC3770V - EPITAXIAL PLANAR NPN TRANSISTOR

KTC3770V Description

SEMICONDUCTOR TECHNICAL DATA VHF/UHF WIDE BAND AMPLIFIER APPLICATION..

KTC3770V Features

* Low Noise Figure, High Gain. NF=1.1dB, |S21e|2=11dB (f=1GHz). MAXIMUM RATING (Ta=25 ) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Range SYMBOL VCBO VCEO VEBO IC PC Tj Ts

📥 Download Datasheet

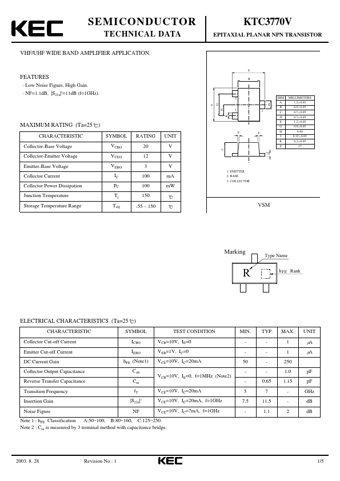

Preview of KTC3770V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KTC3770V
Manufacturer
KEC
File Size
79.82 KB
Datasheet
KTC3770V-KEC.pdf
Description
EPITAXIAL PLANAR NPN TRANSISTOR
