Datasheet Details
- Part number
- KNX7150A
- Manufacturer
- KIA
- File Size
- 294.92 KB
- Datasheet
- KNX7150A-KIA.pdf
- Description
- 20A 500V N-CHANNEL MOSFET
KNX7150A Description

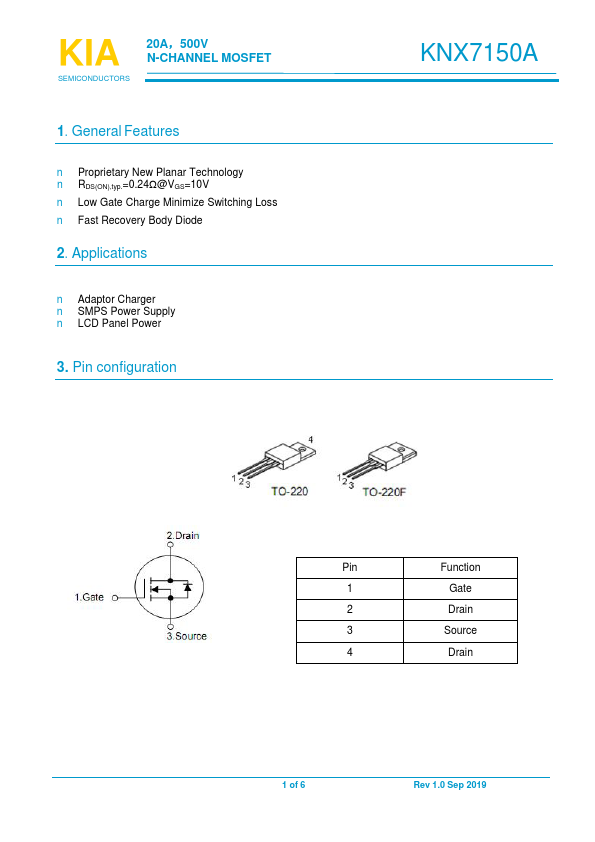

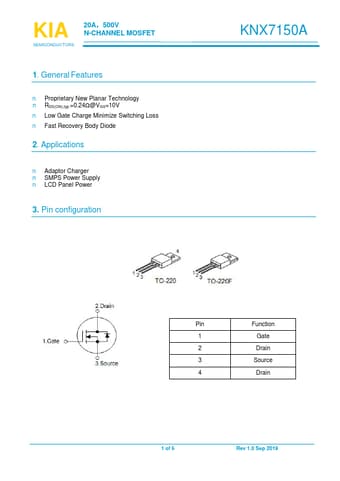

KIA SEMICONDUCTORS 20A，500V N-CHANNEL MOSFET 1.General .
KNX7150A Applications
* n Adaptor Charger n SMPS Power Supply n LCD Panel Power
3. Pin configuration
KNX7150A
Pin
Function
1
Gate
2
Drain
3
Source
4
Drain
1 of 6
Rev 1.0 Sep 2019
KIA
SEMICONDUCTORS
20A，500V N-CHANNEL MOSFET

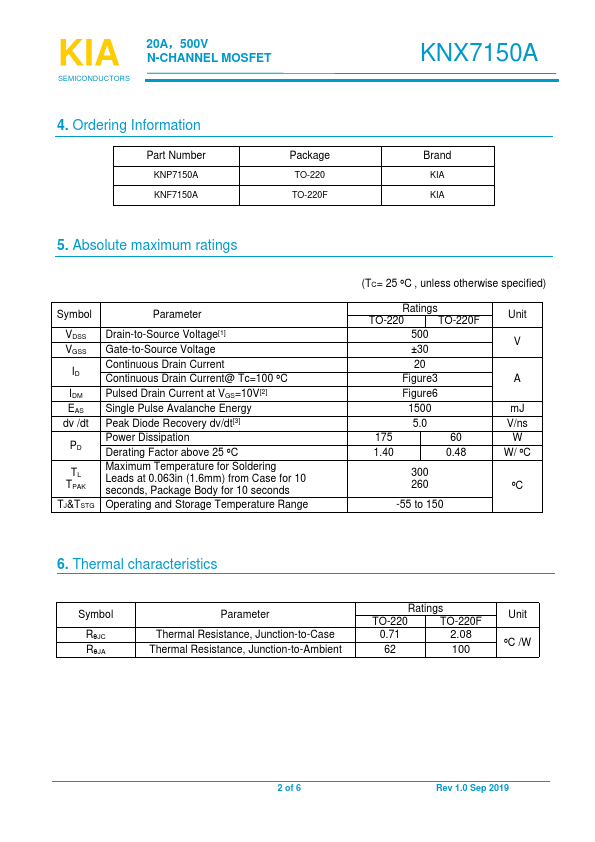

4. Ordering Information
Part Number
KNP7150A KNF7150A
Package
TO-220 TO-220F
KNX71
