WCM-2012-161T

COMMON MODE CHOKE

WCM-2012-161T Features

* Lowprofile and very small size SMD Design, Wound Chip constructure with standard 0805 to 1812 size, with best EMI suppression effect but least impact to data signal wave form. APPLICATIONS Preventive measure against high speed signal radiation emissions such as USB 2.0, IEEE1394 or LAN interface. Be

WCM-2012-161T Datasheet (210.35 KB)

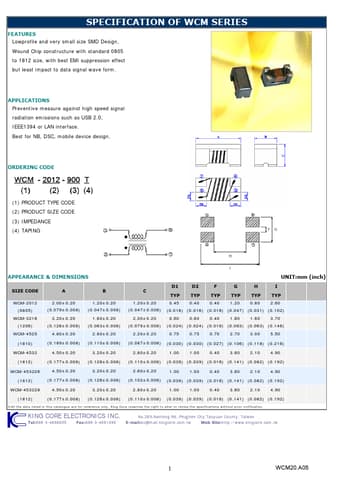

Preview of WCM-2012-161T PDF

Datasheet Details

Part number:

WCM-2012-161T

Manufacturer:

KING CORE

File Size:

210.35 KB

Description:

Common mode choke.
