S8200

Linear LED Driver IC

S8200 Features

* Supplies stable bias current for LEDs

* LED drive current adjustable via single external resistor (Max 150mA)

* Low Cost, Low External Parts Count

* Small Surface-Mount SOT-25 Package

* Halogen-Free Package is Available ◈ Pin Assignment & Description FB 1

S8200 General Description

The S8200 is an integrated adjustable constant-current source, driving loads up to 150mA, The output current level can be adjusted via an external resistor. The integrated SHDN input of the S8200 permits LED brightness regulation by pulse width modulation (PWM), with the SHDN input, the LED brightne.

S8200 Datasheet (326.03 KB)

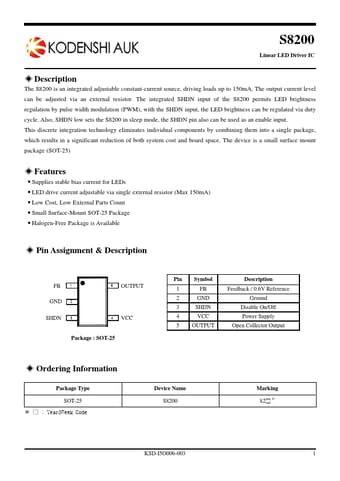

Preview of S8200 PDF

Datasheet Details

Part number:

S8200

Manufacturer:

KODENSHI

File Size:

326.03 KB

Description:

Linear led driver ic.
