S822T

Silicon NPN Planar RF Transistor

S822T Features

* D Low supply voltage D Low current consumption D 50 W input impedance at 945 MHz D Low noise figure D High power gain 2 1 2 1 94 9279 13 579 13 653 13 566 3 4 3 4 S822T Marking: 822 Plastic case (SOT 143) 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter S822TW Marking: W22 Plastic cas

S822T Datasheet (146.70 KB)

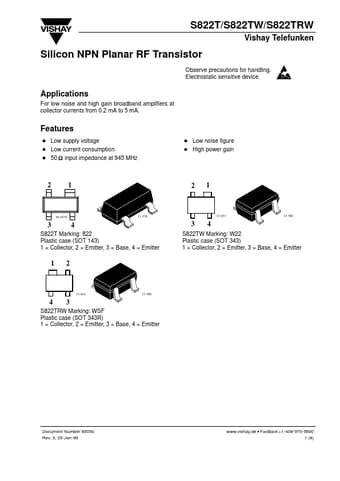

Preview of S822T PDF

Datasheet Details

Part number:

S822T

Manufacturer:

Vishay ↗ Telefunken

File Size:

146.70 KB

Description:

Silicon npn planar rf transistor.
S822T/S822TW/S822TRW Vishay Telefunken Silicon NPN Planar RF Transistor Observe precautions for handling. Electrostatic sensitive device. Applicatio.
