Part number: 1N5818W
Manufacturer: Kexin
File Size: 106.77KB
Download: 📄 Datasheet
Description: Schottky Barrier Diodes

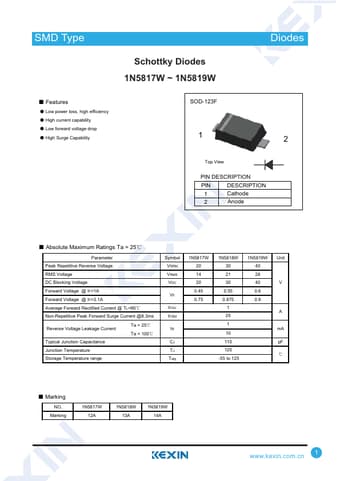

ƽ Low power loss, high efficiency ƽ High current capability ƽ Low forward voltage drop ƽ High Surge Capability
SOD-123F
1
2
Top View
PIN DESCRIPTION PIN DESCRIPTION
1 .
PIN DESCRIPTION
1 Cathode 2 Anode
Ƶ Absolute Maximum Ratings Ta = 25ć
Parameter Peak Repetitive Reverse Voltage RMS Voltage DC Blocking Voltage Forward Voltage @ IF=1A Forward Voltage @ IF=3.1A Average Forward Rectified Current @ TL=90ć Non-Repetit.
