1N5819W - Schottky Barrier Diodes

Product Overview

📥 Download Datasheet

Datasheet preview – 1N5819W

Datasheet Details

Part number 1N5819W
Manufacturer Kexin
File Size 106.77 KB
Description Schottky Barrier Diodes
Datasheet download datasheet 1N5819W Datasheet
Note This datasheet PDF includes multiple part numbers: 1N5819W, 1N5817W.
Please refer to the document for exact specifications by model.
Additional preview pages of the 1N5819W datasheet.

Product details

Description

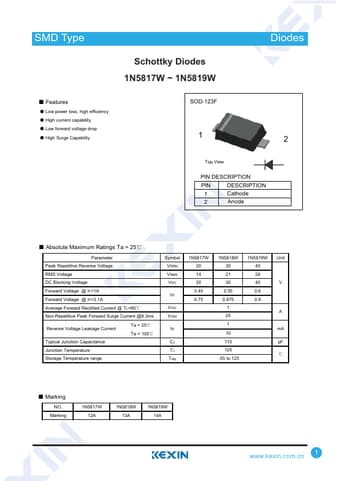

PIN DESCRIPTION 1 Cathode 2 Anode Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Peak Repetitive Reverse Voltage RMS Voltage DC Blocking Voltage Forward Voltage @ IF=1A Forward Voltage @ IF=3.1A Average Forward Rectified Current @ TL=90ć Non-Repetitive Peak Forward Surge Current @8.3ms Reverse Voltage Leakage Current Typical Junction Capacitance Junction Temperature Storage Temperature range Ta = 25ć Ta = 100ć Symbol VRRM VRMS VDC VF IFAV IFSM IR CJ TJ Tstg 1N5817W 20 14 20 0.45 0.75 1N581
