1N5817W - Schottky Barrier Diodes

Product Overview

📥 Download Datasheet

Datasheet preview – 1N5817W

Datasheet Details

Part number 1N5817W
Manufacturer Kexin
File Size 106.77 KB
Description Schottky Barrier Diodes
Datasheet download datasheet 1N5817W Datasheet
Additional preview pages of the 1N5817W datasheet.

Product details

Description

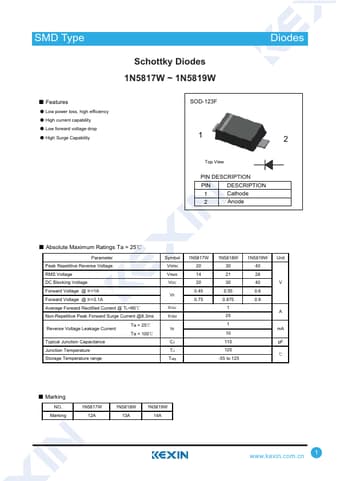

PIN DESCRIPTION 1 Cathode 2 Anode Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Peak Repetitive Reverse Voltage RMS Voltage DC Blocking Voltage Forward Voltage @ IF=1A Forward Voltage @ IF=3.1A Average Forward Rectified Current @ TL=90ć Non-Repetitive Peak Forward Surge Current @8.3ms Reverse Voltage Leakage Current Typical Junction Capacitance Junction Temperature Storage Temperature range Ta = 25ć Ta = 100ć Symbol VRRM VRMS VDC VF IFAV IFSM IR CJ TJ Tstg 1N5817W 20 14 20 0.45 0.75 1N581
