1N5817-G Schottky Barrier Rectifiers

1N5817-G Description

Schottky Barrier Rectifiers 1N5817-G Thru.1N5819-G Reverse Voltage: 20 to 40 V Forward Current: 1.0 A RoHS Device .

1N5817-G Applications

* Mechanical data -Case: JEDEC DO-41 molded plastic -Epoxy: UL 94V-0 rate flame retardant -Polarity: Color band denotes cathode -Mounting position: Any -Weight: 0.012 once, 0.34 grams DO-41 1.000(25.40) Min. 0.034(0.90) DIA. 0.028(0.70) 0.205(5.20) 0.165(4.20) 1.000(25.40) Min. 0.107(2.70) DIA.

📥 Download Datasheet

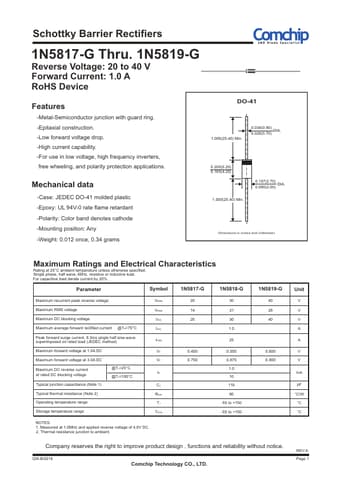

Preview of 1N5817-G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5817-G
Manufacturer
Comchip
File Size
90.96 KB
Datasheet
1N5817-G-Comchip.pdf
Description
Schottky Barrier Rectifiers
