2SB1115A - Transistor

Datasheet Summary

Features

  • World standard miniature package. Low VCE(sat): VCE(sat)=-0.2V at 1A Absolute Maximum Ratings Ta = 25 Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector current (pulse).
  • Total power dissipation Junction temperature Storage temperature range.
  • Pulsed: PW 10 ms, duty cycle 50% Symbol VCBO VCEO VEBO IC IC PT Tj Tstg Rating -80 -60 -6 -1 -2 2 150 -55 to +150 Unit V V V A A W Electrical Characteristics Ta = 25 Parameter Coll.

📥 Download Datasheet

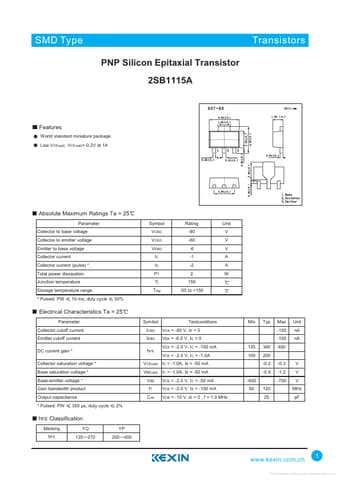

Datasheet preview – 2SB1115A

Datasheet Details

Part number 2SB1115A
Manufacturer Kexin
File Size 68.24 KB
Description Transistor
Datasheet download datasheet 2SB1115A Datasheet
