2SB1120 - PNP Epitaxial Planar Silicon Transistors

Name: 2SB1120
SKU: 2SB1120-741496

Kexin

The 2SB1120 by Kexin is a PNP Epitaxial Planar Silicon Transistors. Below is the official datasheet preview.

Datasheet Details

Part number	2SB1120
Manufacturer	Kexin
File Size	68.99 KB
Description	PNP Epitaxial Planar Silicon Transistors
Datasheet	2SB1120_Kexin.pdf

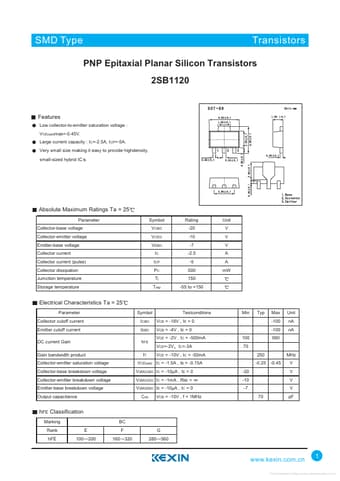

Additional preview pages of the 2SB1120 datasheet.

Low collector-to-emitter saturation voltage : VCE(sat)max=-0.45V. Large current capacity : IC=-2.5A, ICP=-5A. Very small size making it easy to provide highdensity, small-sized hybrid IC’ s. Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current (pulse) Collector dissipation Jumction temperature Storage temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Rating -20 -10 -7 -2.5 -5 500 150 -55 to +150 Un.
