* Adoption of FBET, MBIT processes.
* Low collector-to-emitter saturation voltage.
* Large current capacity and wide ASO.
* Fast switching speed.
* The ultraminiature package facilitates higher-density mounting, thus allows the applied hybrid IC’s further mini
2SB1123
Sanyo Semicon Device
31.19 KB
Pnp transistor.

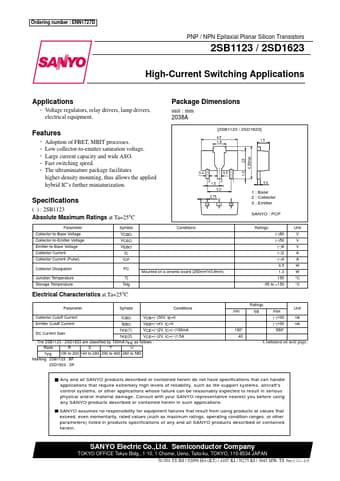

Ordering number : ENN1727D
2SB1123 / 2SD1623
PNP / NPN Epitaxial Planar Silicon Transistors
2SB1123 / 2SD1623
High-Current Switching Applications
Ap.
