BAW101S - High Voltage Double Diode

Kexin

📥 Download Datasheet

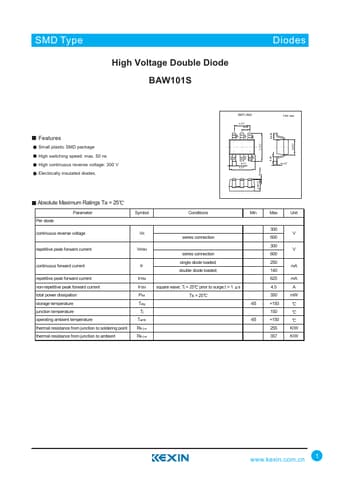

BAW101S Datasheet Preview — Preview of BAW101S PDF

datasheet Preview Page 2

Datasheet Details

Part number	BAW101S
Manufacturer	Kexin
File Size	38.06 KB
Description	High Voltage Double Diode
Datasheet	BAW101S-Kexin.pdf

BAW101S Product details

Features

Small plastic SMD package High switching speed: max. 50 ns High continuous reverse voltage: 300 V Electrically insulated diodes. 0.1max SOT-363 1.3+0.1 -0.1 0.65 Unit: mm 0.525 +0.152.3 -0.15 0.36 0.3+0.1 -0.1 2.1+0.1 -0.1 0.1+0.05 -0.02 +0.050.95 -0.05 Absolute Maximum Ratings Ta = 25 Per diode Parameter Symbol Conditions Min continuous reverse voltage VR series connection repetitive peak forward current continuous forward current repetitive peak forward current non-repetitive.
