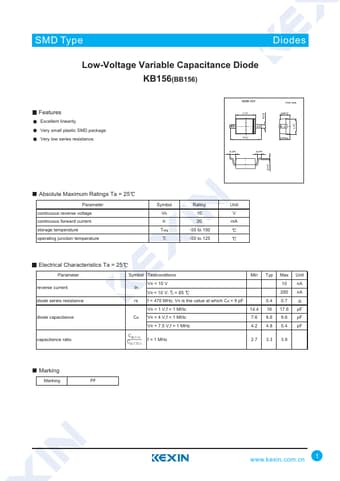

Excellent linearity Very small plastic SMD package Very low series resistance. SOD-323
1.7+0.1 -0.1
Unit: mm 0.85+0.05
-0.05
+0.050.3 -0.05
+0.11.3 -0.1
2.6+0.1 -0.1
0.475
0.375
1.0max
+0.050.1 -0.02
Absolute Maximum Ratings Ta = 25
Parameter continuous reverse voltage continuous forward current storage temperature operating junction temperature
Symbol VR IF Tstg Tj
Rating 10 20
-55 to 150 -55 to 125
Unit V mA
Electrical Characteristics Ta = 25
Parameter reverse current diode serie.
