BB153 Datasheet - Philipss

VHF variable capacitance diode

BB153 Features

* Excellent linearity

* Excellent matching to 2% DMA

* Very small plastic SMD package

* C28: 2.6 pF; ratio 15

* Very low series resistance. APPLICATIONS

* Electronic tuning in VHF television tuners, band B up to 460 MHz

* Voltage controlled osc

BB153 General Description

cathode anode DESCRIPTION The BB153 is a planar technology variable capacitance diode, in a SOD323 very small plastic SMD package. The excellent matching performance is achieved by gliding matching and a direct matching assembly procedure. BB153 handbook, 2 columns 1 2 MAM392 Marking code: PC..

BB153 Datasheet (53.27 KB)

BB153 Datasheet Preview — Preview of BB153 PDF

Datasheet Details

Part number:

BB153

Manufacturer:

Philipss

File Size:

53.27 KB

Description:

Vhf variable capacitance diode.

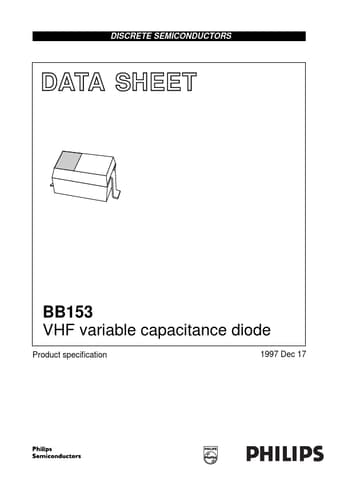

DISCRETE SEMICONDUCTORS DATA SHEET alfpage M3D049 BB153 VHF variable capacitance diode Product speciﬁcation 1997 Dec 17 Philips Semiconductors Pr.
