BB152 Datasheet - Philipss

VHF variable capacitance diode

BB152 Features

* High linearity

* Excellent matching to 2% DMA

* Very small plastic SMD package

* C28: 2.7 pF; ratio: 22

* Low series resistance. APPLICATIONS

* Electronic tuning in VHF television tuners, band A up to 160 MHz

* Voltage controlled oscillators

BB152 General Description

The BB152 is a planar technology variable capacitance diode, in a SOD323 package. The excellent matching performance is achieved by gliding matching and a direct matching assembly procedure. PINNING PIN 1 2 DESCRIPTION cathode anode handbook, 2 columns BB152 1 2 MAM392 Marking code: PB. Cathode.

BB152 Datasheet (53.46 KB)

BB152 Datasheet Preview — Preview of BB152 PDF

Datasheet Details

Part number:

BB152

Manufacturer:

Philipss

File Size:

53.46 KB

Description:

Vhf variable capacitance diode.

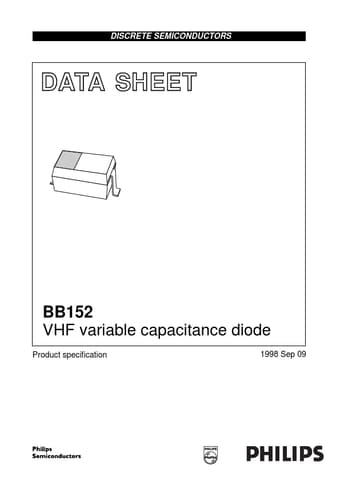

DISCRETE SEMICONDUCTORS DATA SHEET alfpage M3D049 BB152 VHF variable capacitance diode Product speciﬁcation 1998 Sep 09 Philips Semiconductors Pr.
