BB158 - VHF variable capacitance diode

BB158 Description

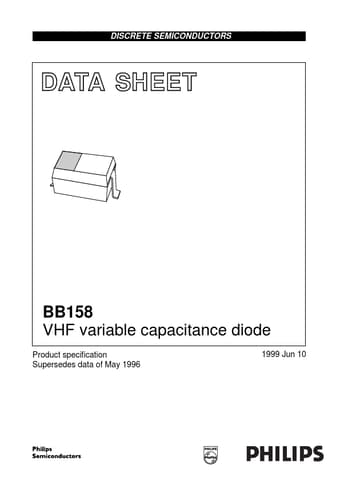

DISCRETE SEMICONDUCTORS DATA SHEET alfpage M3D049 BB158 VHF variable capacitance diode Product speciļ¬cation Supersedes data of May 1996 1999 Jun 10.
The BB158 is variable capacitance diode, fabricated in planar technology, and encapsulated in the SOD323 very small plastic SMD package.

BB158 Features

* Excellent linearity
* Very small plastic SMD package
* C28: 2.6 pF; ratio: 15

BB158 Applications

* Electronic tuning in VHF television tuners, band B up to 460 MHz
