OB2263 Datasheet - Kexin

OB2263 - Current Mode PWM Controller

P Ground I Feedback input pin.

The PWM duty cycle is determined by voltage level into this pin and SENSE pin input.

I Current sense input pin.

Connected to MOSFET current sensing resistor node.

P Chip DC power supply pin.

O Totem-pole gate drive output for the power MOSFET.

* Absolute Maximum R

OB2263 Features

* Audio Noise Free Operation

* External Programmable PWM Switching Frequency

* Internal Synchronized Slope Compensation

* Low VDD Startup Current and Low Operating Current (1.4mA)

* Leading Edge Blanking on Current Sense Input

* Good Protection Coverage With Auto Self-Recover

OB2263-Kexin.pdf

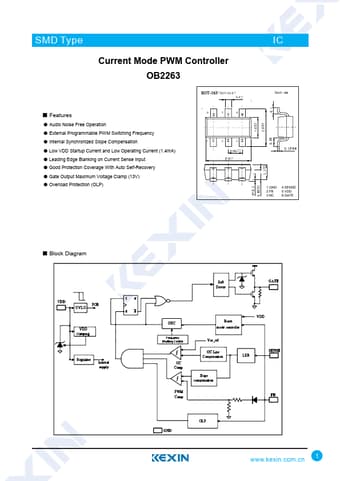

Preview of OB2263 PDF
OB2263 Datasheet Preview Page 2 OB2263 Datasheet Preview Page 3

Datasheet Details

Part number:

OB2263

Manufacturer:

Kexin

File Size:

1.13 MB

Description:

Current mode pwm controller.
