S3MBF - Rectifier Diodes

📥 Download Datasheet

Preview of S3MBF PDF

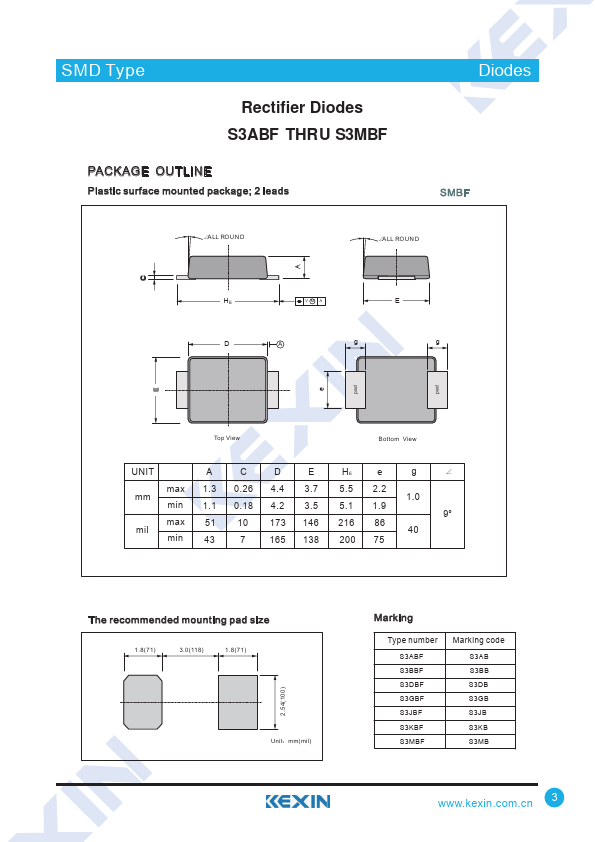

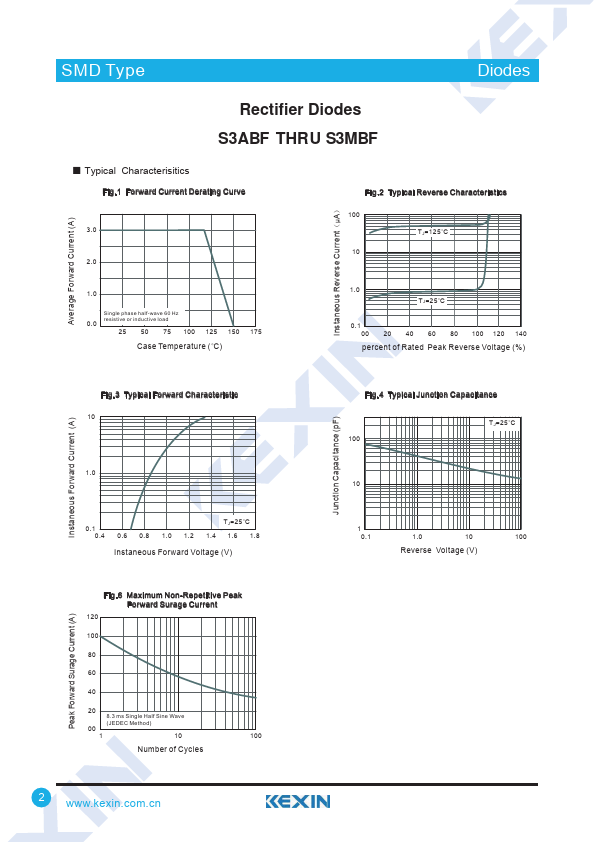

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number S3MBF
Manufacturer Kexin
File Size 198.70 KB
Description Rectifier Diodes
Datasheet download datasheet S3MBF-Kexin.pdf

S3MBF Product details

Description

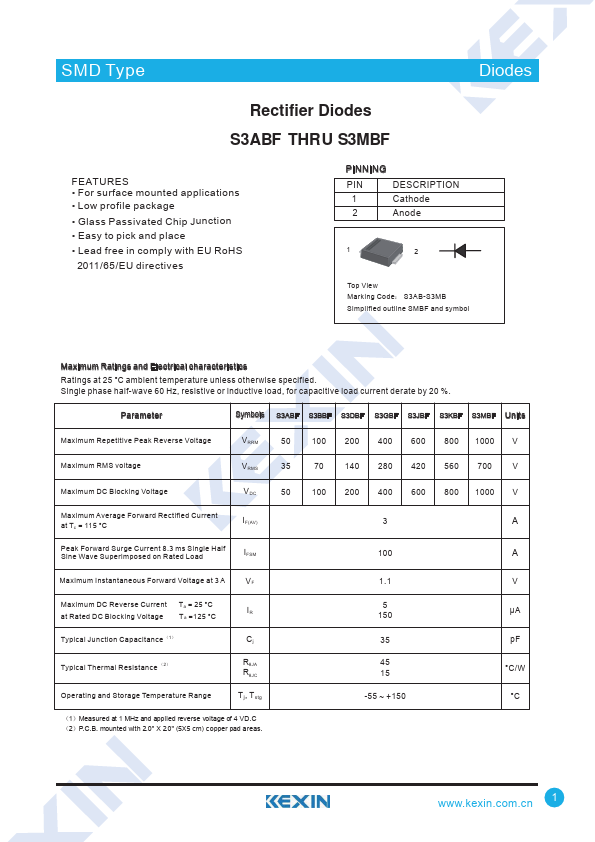

1 Cathode 2 Anode 1 2 Top View Marking Code˖ S3AB-S3MB Simplified outline SMBF and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.Parameter Symbols S3ABF S3BBF S3DBF S3GBF S3JBF S3KBF S3MBF Units Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140

Features
