KPA-3010

RIGHT ANGLE SMD CHIP LED LAMPS

KPA-3010 Features

* ® 3.0x1.0mm RIGHT ANGLE SMD CHIP LED LAMPS KPA-3010 Package Dimensions l3.0mmx1.0mm SMT LED. 2.0mm THICKNESS. lLOW POWER CONSUMPTION. lWIDE VIEWING ANGLE. lIDEAL FOR BACKLIGHT AND INDICATOR. lVARIOUS COLORS AND LENS TYPES AVAILABLE. Description The Bright Red source color devices are made with

KPA-3010 General Description

The Bright Red source color devices are made with Gallium Phosphide Red Light Emitting Diode. The Super Bright Green source color devices are made with Gallium Phosphide Green Light Emitting Diode. The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosp.

KPA-3010 Datasheet (470.93 KB)

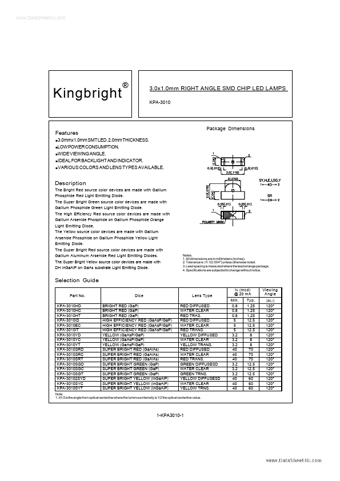

Preview of KPA-3010 PDF

Datasheet Details

Part number:

KPA-3010

Manufacturer:

Kingbright Corporation

File Size:

470.93 KB

Description:

Right angle smd chip led lamps.
