KPA-3010F3C - Right Angle Infrared Emitting Diode

KPA-3010F3C Description

KPA-3010F3C 3.0 mm x 1.0 mm Right Angle Infrared Emitting Diode .
F3 Made with Gallium Arsenide Infrared Emitting diodes PACKAGE DIMENSIONS FEATURES. 3.

KPA-3010F3C Features

* 3.0 x 2.0 x 1.0 mm right angle SMD LED, 1.0 mm thickness
* Mechanically and spectrally matched to the phototransistor
* Package: 2000 pcs / reel
* Moisture sensitivity level: 3
* Tinned pads for improved solderability
* Halogen-free
* RoHS compliant Kingbright A

KPA-3010F3C Applications

* Infrared Illumination for cameras
* Machine vision systems
* Surveillance systems
* Industrial electronics
* IR data transmission
* Remote control RECOMMENDED SOLDERING PATTERN (units : mm; tolerance : ± 0.1) Notes: 1. All dimensions are in millimeters (inches). 2. Tolera

📥 Download Datasheet

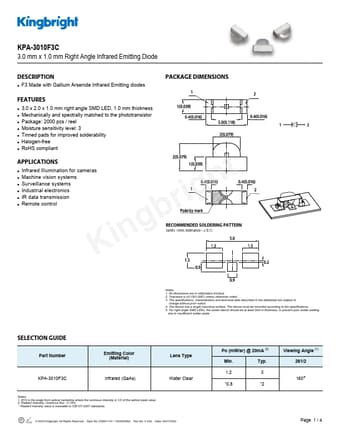

Preview of KPA-3010F3C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KPA-3010F3C
Manufacturer
Kingbright
File Size
624.21 KB
Datasheet
KPA-3010F3C-Kingbright.pdf
Description
Right Angle Infrared Emitting Diode
