KPA1764

MOS Field Effect Transistor

KPA1764 Features

* Dual chip type Low on-state resistance RDS(on)1 = 27 m RDS(on)2 = 32 m RDS(on)3 = 34 m TYP. (VGS = 10 V, ID = 3.5 A) TYP. (VGS = 4.5 V, ID = 3.5 A) TYP. (VGS = 4.0 V, ID = 3.5 A) 1 : Source 1 2 : Gate 1 7, 8 : Drain 1 3 : Source 2 4 : Gate 2 Low input capacitance Ciss = 1300 pF TYP. Built-in G-S pr

KPA1764 Datasheet (66.49 KB)

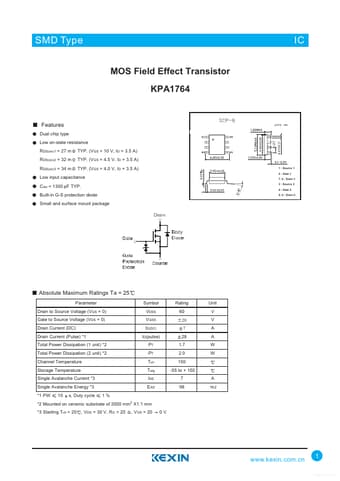

Preview of KPA1764 PDF

Datasheet Details

Part number:

KPA1764

Manufacturer:

Kexin

File Size:

66.49 KB

Description:

Mos field effect transistor.
