KPA1790 - MOS Field Effect Transistor

KPA1790 Description

SMD Type MOS Field Effect Transistor KPA1790 .

KPA1790 Features

* Dual chip type Low on-state resistance N-channel RDS(on)1 = 0.12 RDS(on)2 = 1.19 P-channel RDS(on)1 = 0.45 RDS(on)2 = 0.74 Low input capacitance N-channel Ciss = 180 pF TYP. P-channel Ciss = 230 pF TYP. Built-in G-S protection diode Small and surface mount package TYP. (VGS = 10 V, ID = 0.5 A) TYP.

📥 Download Datasheet

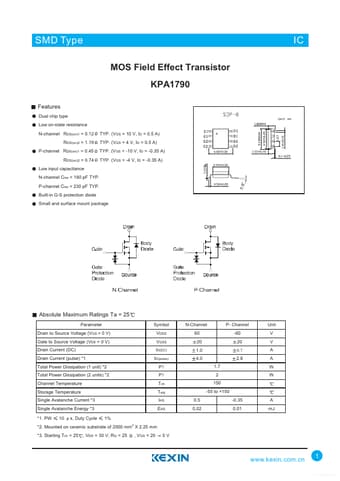

Preview of KPA1790 PDF
datasheet Preview Page 2

Datasheet Details

Part number
KPA1790
Manufacturer
Kexin
File Size
75.95 KB
Datasheet
KPA1790_Kexin.pdf
Description
MOS Field Effect Transistor
