KPA-3010P3C, KPA - Right Angle Phototransistor

KPA-3010P3C Description

KPA-3010P3C 3.0 mm x 1.0 mm Right Angle Phototransistor .
Made with NPN silicon phototransistor chips PACKAGE DIMENSIONS FEATURES. 3.

KPA-3010P3C Features

* 3.0 x 2.0 x 1.0 mm right angle SMD LED, 1.0 mm thickness
* Mechanically and spectrally matched to the infrared emitting LED lamp
* Package: 2000 pcs / reel
* Moisture sensitivity level: 3
* Tinned pads for improved solderability Kingbright
* Halogen-free
* RoHS

KPA-3010P3C Applications

* Infrared applied systems
* Optoelectronic switches
* Photodetector control circuits
* Sensor technology RECOMMENDED SOLDERING PATTERN (units : mm; tolerance : ± 0.1) ABSOLUTE MAXIMUM RATINGS at TA=25°C Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.15(0

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KPA-3010P3C, KPA. Please refer to the document for exact specifications by model.

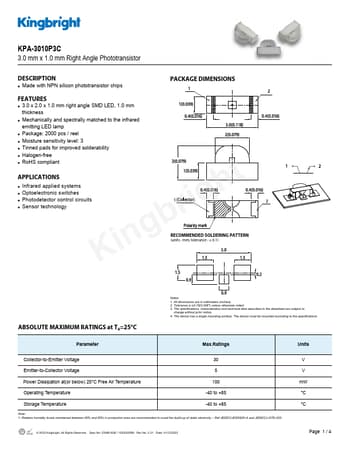

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KPA-3010P3C, KPA
Manufacturer
Kingbright
File Size
591.25 KB
Datasheet
KPA-3010P3CKingbright.pdf
Description
Right Angle Phototransistor
Note
This datasheet PDF includes multiple part numbers: KPA-3010P3C, KPA.
Please refer to the document for exact specifications by model.
