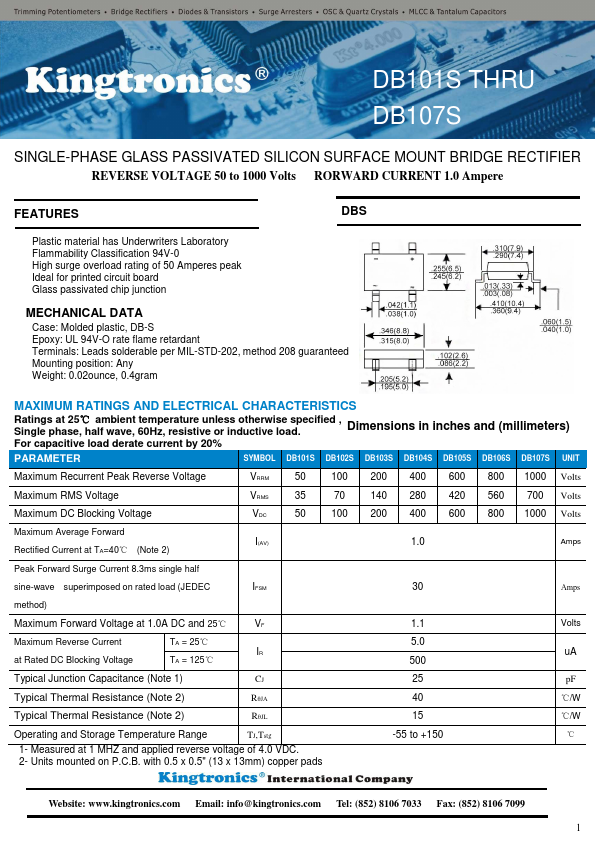

DB106S, DB101S - SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIER

Kingtronics

Datasheet Details

Part number	DB106S, DB101S
Manufacturer	Kingtronics
File Size	708.21 KB
Description	SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIER
Datasheet	DB101S-Kingtronics.pdf
Note	This datasheet PDF includes multiple part numbers: DB106S, DB101S. Please refer to the document for exact specifications by model.

DBS Plastic material has Underwriters Laboratory Flammability Classification 94V-0 High surge overload rating of 50 Amperes peak Ideal for printed circuit board Glass passivated chip junction.
