KBPC35005 Single Phase Glass Passivated Bridge Rectifiers

KBPC35005 Description

KBPC35005 THRU KBPC3510 SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 35.0 Ampere .

KBPC35005 Features

* KBPC High forward surge current capability. Integrally molded heatsink provide very low thermal resistance. High isolation voltage from case to lugs. High temperature soldering guaranteed: 260℃/10 second, at 5 lbs. (2.3kg) tension. MECHANICAL DATA Case: Metal case. Terminal: Plated 0.25" (6.35mm

📥 Download Datasheet

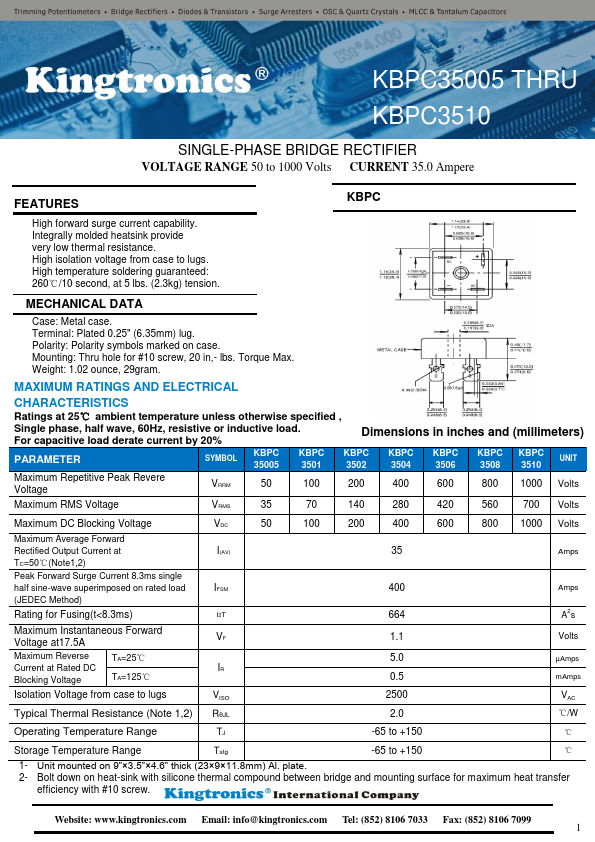

Preview of KBPC35005 PDF

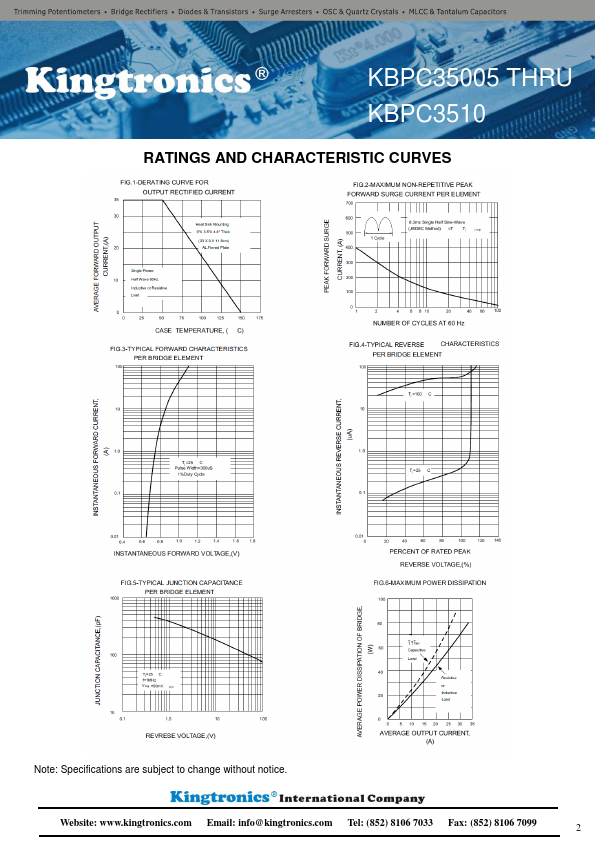

datasheet Preview Page 2

Datasheet Details

Part number
KBPC35005
Manufacturer
Kingtronics
File Size
416.09 KB
Datasheet
KBPC35005-Kingtronics.pdf
Description
Single Phase Glass Passivated Bridge Rectifiers
