KBPC3508, KBPC35005 Single Phase Glass Passivated Bridge Rectifiers

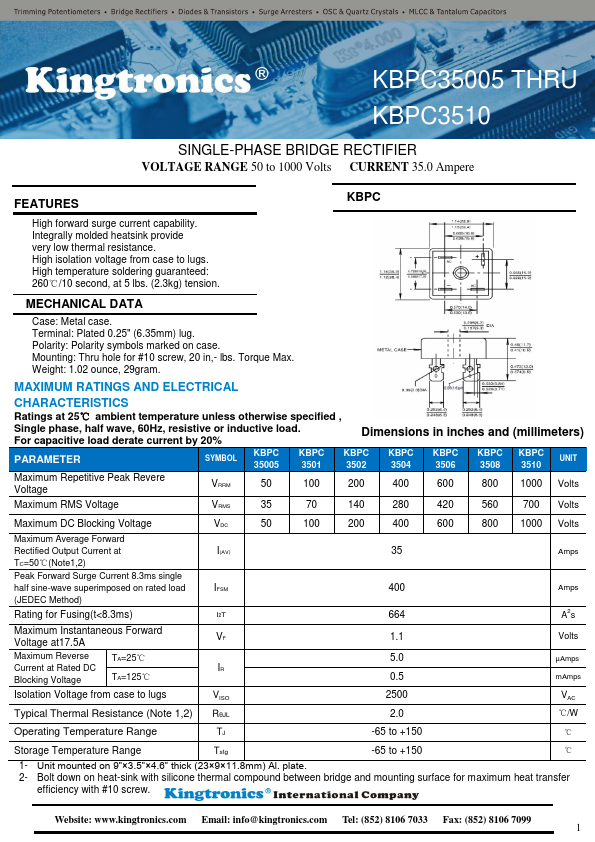

📥 Download Datasheet  Datasheet Preview Page 1

Description

KBPC35005 THRU KBPC3510 SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 35.0 Ampere .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KBPC3508, KBPC35005. Please refer to the document for exact specifications by model.

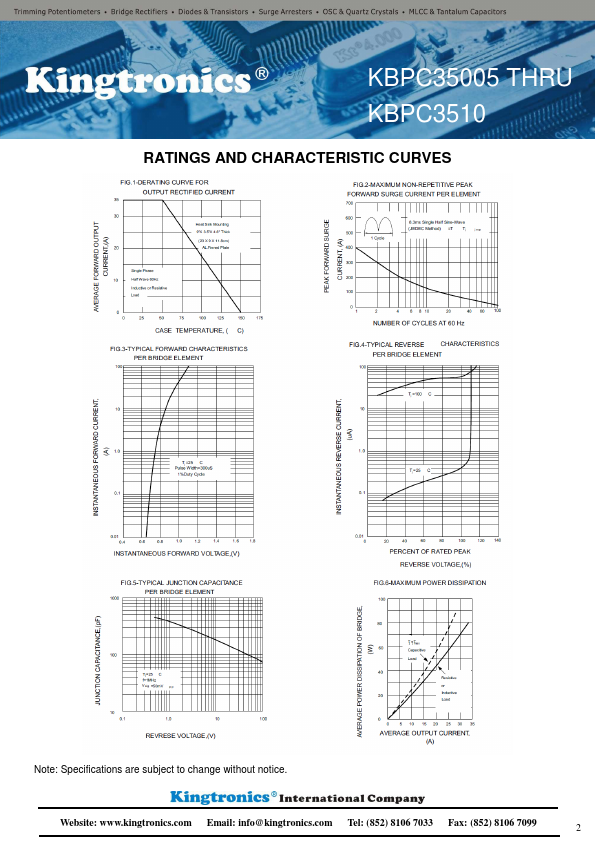

datasheet Preview Page 2

Datasheet Specifications

Part number
KBPC3508, KBPC35005
Manufacturer
Kingtronics
File Size
416.09 KB
Datasheet
KBPC35005-Kingtronics.pdf
Description
Single Phase Glass Passivated Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: KBPC3508, KBPC35005.
Please refer to the document for exact specifications by model.

Features

* KBPC High forward surge current capability. Integrally molded heatsink provide very low thermal resistance. High isolation voltage from case to lugs. High temperature soldering guaranteed: 260℃/10 second, at 5 lbs. (2.3kg) tension. MECHANICAL DATA Case: Metal case. Terminal: Plated 0.25" (6.35mm
